BL  Bilinear Panes

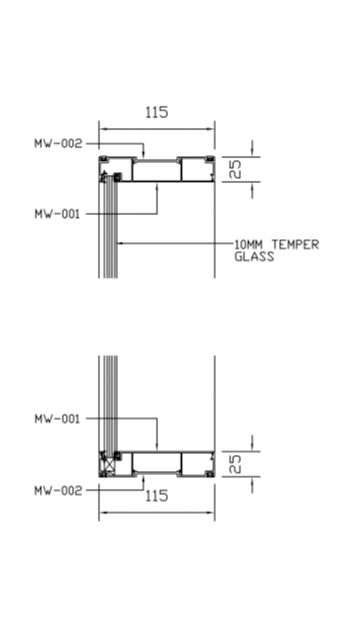

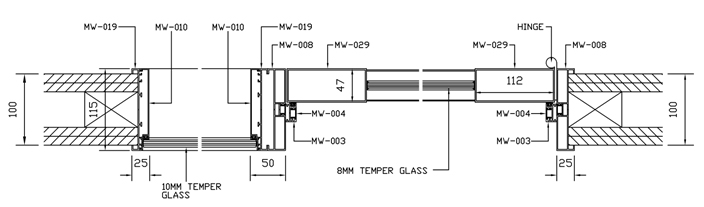

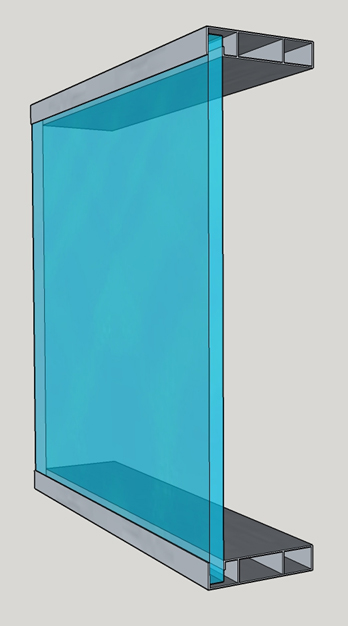

BL is our newest developed system.  It is a fully framed single glazed partition system at which the glass is designed to situate on the front edge to form a discreet flush appearance.  It is compatible with a wide range of glass and door options.  Mullions and frames are available either 25mm or 50mm and the system is 115mm wide.  For an innovative and fully integrated office environment, Bilinear Panes can be combined with any other solid and glazed partitioning systems from our range.

RAUM GLASS PARTITION

BL Summary

  • Single glazed partition

  • Aluminium structure and framework based on snap-in profiles

  • Tempered glass thickness range 6 – 12mm as optional

  • Compatible with solid veneered, single glazed or double glazed entry, or double glazed rebate doors with optional hardware and ironmongery

  • Unique 115mm width enables for flush alignment with skirting on drywall

  • Powder coated finish with RAL colour selection, and PVDF coating

  • Excellent Acoustic performance STC 33 – 36 subject to glass specification and glass fixing options

LP  Lateral Panes

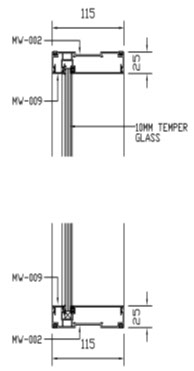

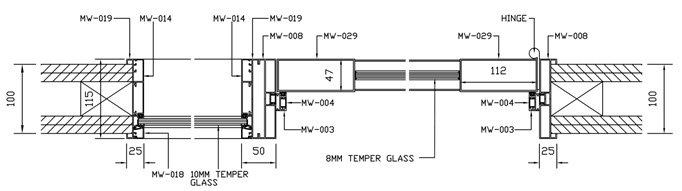

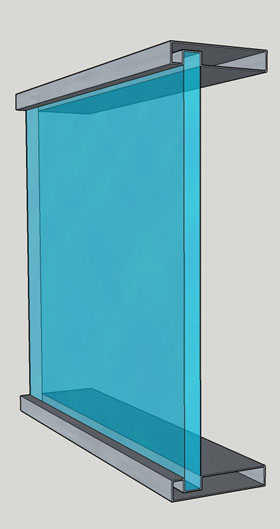

LP is a unique system which depicts distinctive modern design.  It is a fully framed single glazed partition system at which the glass offsets to one side, encouraging the appreciation of asymmetry in the design.  It is compatible with a wide range of glass and door options.  Mullions and frames are available either 25mm or 50mm and the system is 115mm wide.  For an innovative and fully integrated office environment, Lateral Panes can be combined with any other solid and glazed partitioning systems from our range.



LP Summary

  • Single glazed partition

  • Aluminium structure and framework based on snap-in profiles

  • Tempered glass thickness range 6 – 12mm as optional

  • Compatible with solid veneered, single glazed or double glazed entry, or double glazed rebate doors with optional hardware and ironmongery

  • Unique 115mm width enables for flush alignment with skirting on drywall

  • Powder coated finish with RAL colour selection, and PVDF coating

  • Excellent Acoustic performance STC 33 – 36 subject to glass specification and glass fixing options.

CP  Center Panes

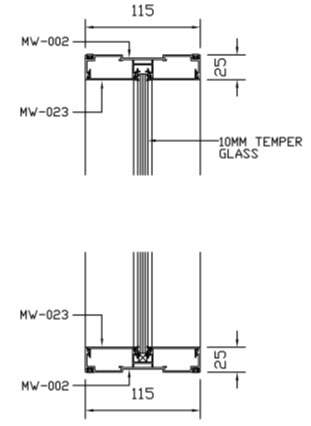

CP is a classic, simple yet elegant system.  It is a fully framed single glazed partition system at which the glass sits in the center.  It is compatible with a wide range of glass and door options.  Mullions and frames are available either 25mm or 50mm and the system is 115mm wide.  For an innovative and fully integrated office environment, Center Panes can be combined with any other solid and glazed partitioning systems from our range.



CP Summary

  • Single glazed partition

  • Aluminium structure and framework based on snap-in profiles

  • Tempered glass thickness range 6 – 12mm as optional

  • Compatible with solid veneered, single glazed or double glazed entry, or double glazed rebate doors with optional hardware and ironmongery

  • Unique 115mm width enables for flush alignment with skirting on drywall

  • Powder coated finish with RAL colour selection, and PVDF coating

  • Excellent Acoustic performance STC 33 – 36 subject to glass specification and glass fixing options
