It is compatible with a wide range of glass and door options.  Mullions and frames are available either 25mm or 50mm and the system is 115mm wide.  For an innovative and fully integrated office environment, Bilinear Panes Plus can be combined with any other solid and glazed partitioning systems from our range.

BL+ Bilinear Panes Plus

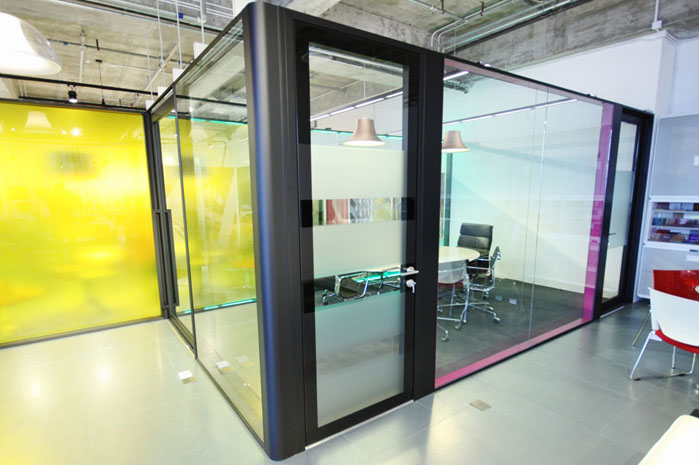

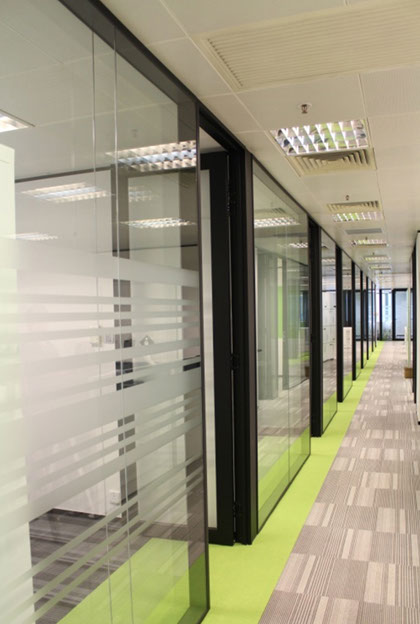

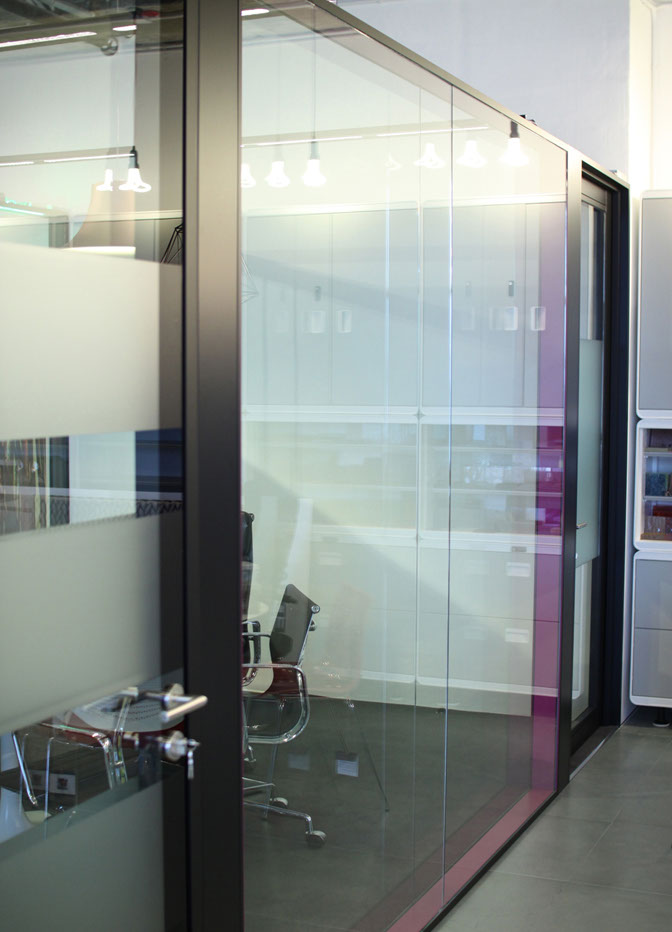

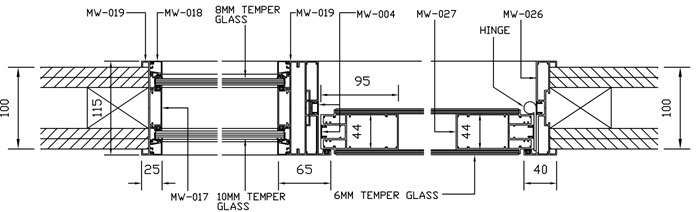

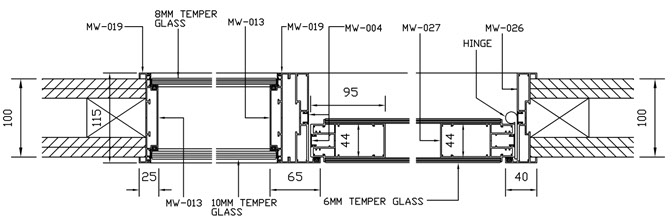

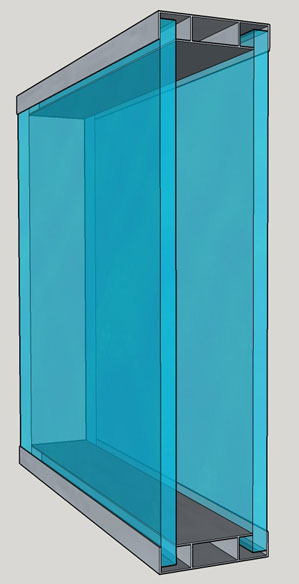

BL+ is the double glazed version of our newest developed BL system.  It is a fully framed double glazed partition system at which each glass is designed to situate on the front edge of each side to form a discreet flush appearance, accomplishing appealing aesthetics and excellent acoustic performance.

BL+ Summary

  • Double glazed partition

  • Aluminium structure and framework based on snap-in profiles

  • Tempered glass thickness range 6 – 12mm as optional

  • Compatible with solid veneered, single glazed or double glazed entry, or double glazed rebate doors with optional hardware and ironmongery

  • Unique 115mm width enables for flush alignment with skirting on drywall

  • Powder coated finish with RAL colour selection, and PVDF coating

  • Excellent Acoustic performance STC 44 – 49 subject to glass specification and glass fixing options.

LP+ Lateral Panes Plus

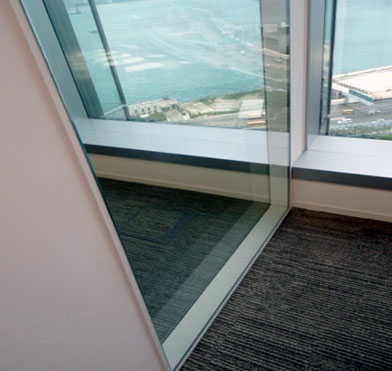

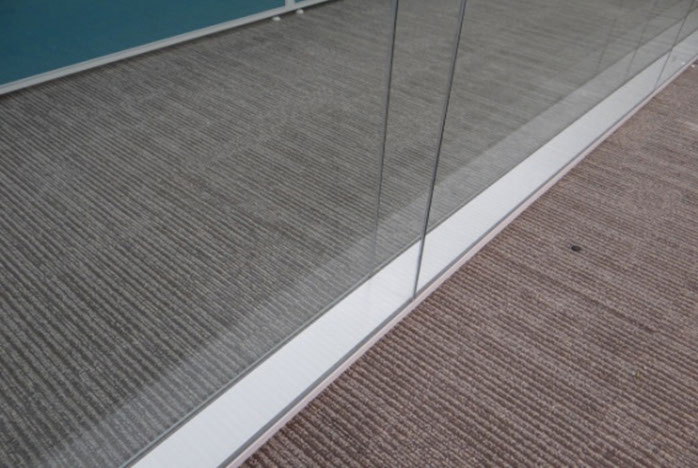

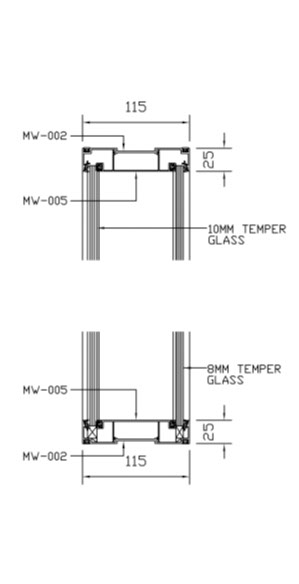

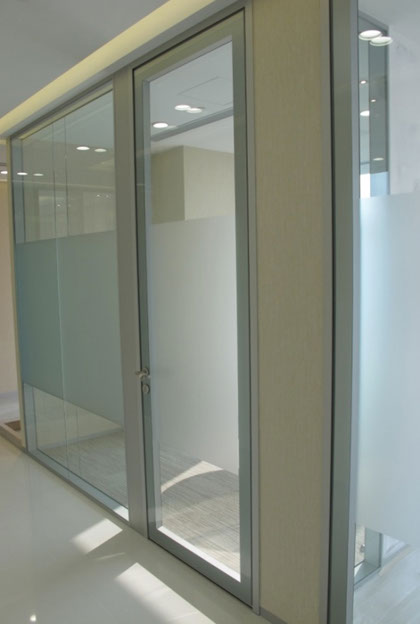

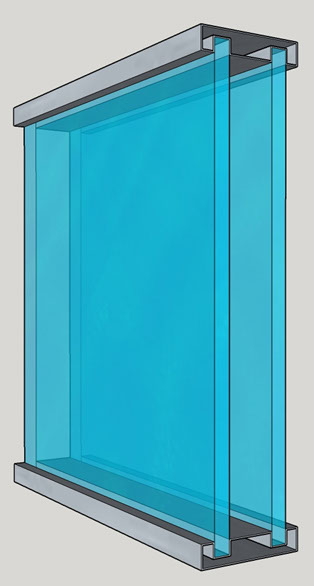

LP+ is the double glazed version of our distinctive LP system.  It is a fully framed double glazed partition system at which each glass is offset to one side, accomplishing outstanding aesthetics and excellent acoustic performance.  It is compatible with a wide range of glass and door options.  Mullions and frames are available either 25mm or 50mm and the system is 115mm wide.  For an innovative and fully integrated office environment, Lateral Panes Plus can be combined with any other solid and glazed partitioning systems from our range.



LP+ Summary

  • Double glazed partition

  • Aluminium structure and framework based on snap-in profiles

  • Tempered glass thickness range 6 – 12mm as optional

  • Compatible with solid veneered, single glazed or double glazed entry, or double glazed rebate doors with optional hardware and ironmongery

  • Unique 115mm width enables for flush alignment with skirting on drywall

  • Powder coated finish with RAL colour selection, and PVDF coating

  • Excellent Acoustic performance STC 44 – 49 subject to glass specification and glass fixing options.
